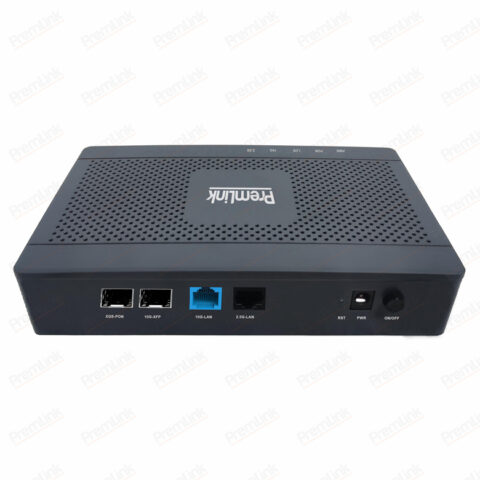

PLS04 XGS-PON ONU is a series of ITU-T G.9807 based XGS-PON ONU designed for home and office users. Its uplink interface is a SFP+ port that supports 10 Gbit/s downstream and 10 Gbit/s upstream bandwidth for XGS-PON.
The PLS04 XGS-PON ONU series offers 1* 10Gigabit Ethernet or SFP+ ports and 4 Gigabit Ethernet ports for LAN. It also offers 2* FXS ports, providing high quality voice for subscribers.
Built for FTTx deployments, PLS04 XGS-PON ONU supports powerful home gateway/CPE features, such as Multiple WAN, QoS, VLAN, Firewall, ACL, etc. PLS04 XGS-PON ONU is a high-end Internet Data, Voice all-in-one XGS PON ONU for ISPs deploying Triple Play networks over single fiber.
MIAN FEATURES
- Complies with ITU-T G.9807 XGS PON standard, interoperable with Huawei, ZTE, Fiberhome, Nokia XGS PON OLTs.
- Offers 1 XGS PON SFP+WAN port, support 10 Gbit/s upstream and 10 Gbit/s downstream
- Offers 1*10G (Ethernet or SFP+)LAN port, support network bridge and Router functions
- Max 1:256 Fiber ration, max transmission distance can reach 20km
- Support AES 128-bit encrypted and key switching, enhancing transmission security
- Support 32 TcONUs and 256 GEM Port IDs, enabling multiple services on a single subscriber CPE.
- Support FEC (Forward Error Correction), ensures high reliable and precise data transmission
- Support Rich layer 2 Management features, applicable to the biggest ISP networks
- Support FBA (Flexible Bandwidth Assignation), dynamic assign bandwidth automatically
- Support Dynamic Bandwidth Allocation (DBA), smarter bandwidth assignment and usage
- High security, data encrypted at upstream and downstream directions
- Support L2 Switching features, such as IEEE802.1Q VLAN, 802.1P QoS, etc
- Support OMCI and TR069 Management, manage subscribers remotely
- Supports IPv4 and IPv6, highly applicable in both IP type based networks
- Support 12 KB jumbo frame.
XGS-PON FEATURES
- SFP+ package with SC/UPC receptacle
- Transmission wavelength: Upstream: 1270nm/ Downstream: 1577nm
- Support ITU-T G.9807.1
- Hot-pluggable capability
- Support 1:256 Fiber Ratio at 20km transmission distance.
- Maximum 10 Gbps Downlink/10 Gbps uplink
- Downstream security AES128 counter mode decryption
- Upstream security AES128 counter mode decryption
- OMCI messages is fully compatible with ITU-T G.988
- Per GEM port traffic downstream policing and upstream shaping,Per GEM port performance monitor
- 256 GEM-Port-ID / XGEM-Port-ID,32-TCONU
- Min-Max Ethernet Frame Size: 64B-12kB ranges
- Support per XGEM-Port-ID base VoQ and per ALLOC-ID base VoQ on upstream
- Upstream Output Scheduling: Strict-Priority + DWRR
- Support Dying Gasp
NETWORKING FEATURES
- MAC Learning, 2K MAC address table
- Bridged or Route network mode
- Support RIP v1, v2 for routing
- Static Route, Dynamic Route, DNS Proxy,
- IPv4 & IPv6 TCP, UDP, RTP, SNTP, NAT, DHCP, DNS IEEE802.1Q VLAN, port VLAN
- 1x, MAC, IP, or TCP/UDP based ACLs
- Port Bandwidth CONUrol,3x flow cONUrol
- Storm CONUrol: Broadcast/Multicast/unknown unicast, ARP
- Port Isolation, port Mirror,Auto MDI/MDIX
- 1d STP, port Loop detection
- IGMP v2, v3 & IGMP Snoopingfor IPv4
- MLD v2, v3 & MLD Snooping for IPv6
- VLAN binding
- ALG/UPnP
VoIP FEATURES
- Offers 2*FXS ports for Phone connections
- 2 Calls can be made/received simultaneously
- SIP V1, V2 (RFC3261, RFC3262, RFC3264, RFC3265)
- SIP & H.248, support registering 2 SIP accounts
- 711, G.723.1, G.729A-8kbps, G.726, G.722, ILBC voice codes
- DTMF Tone Detection, DTMF Tone Relay,
- Multiple Calling Tone, FSK Caller ID
- Calling line Identification Presentation
- Calling line Identification Restriction
- Call forwarding, call transfer, call hold, three-way conference, etc
- QoS and TOS to ensure voice packets pass through in priority
- Support RFC62 Echo protocol
- Support Digital Map configuration
QoS
IEEE802.1P QoS, DSCP, TOS:
SP, WRR, SP+WRR dispatching Algorithm
Source & DST-MAC based QoS
VLAN ID, VLAN Priority based QoS
Source DST-IP based QoS
FIREWALL FUNCTIONS
- Network Address Translation (NAT)
- Stateful Packet Inspection (SPI)
- IP filter/MAC filter/URL filter/DMZ
- Prevention of ARP and DDoS attacks
- Virtual servers (Port Forwarding)
- Remote Access
VPN FUNCTIONS
- IPSec/PPTP/L2TP/PPPoE pass-through
MANAGEMENT
- Telnet Management
- HTTP WEB UI Management
- TR069 ACS management
INTERCOPERABLE GPON OLT MODELS
- HUAWEI SmartAX EA5800-X17, EA5800-X17, EA5800-X7, EA5800-X2
- ZTEC600 C650 XGS-PON OLT
- Alcatel Lucent7342, 7360 ISAM GPON OLT
- Nokia7360 ISAM GPON OLT
- FiberhomeAN6000-17, AN6000-15, AN6000-7, AN6000-2
HARDWARE FEATURES
- Realtek RTL9619BQuad-Core 0 GHz
- Offers 1 XGS PON SFP+WAN port, support 10 Gbit/s upstream and 10 Gbit/s downstream
HARDWARE PARAMETERS & INTERFACES
| Standards | ITU-T G.988,ITU-T G.9807.1, ITU-T G.987.3, ITU-T G.989.3, G.984.3, IEEE 802.3ah,IEEE 802.3,IEEE 802.3u, IEEE802.3ab, IEEE802.3an, IEEE802.3bz, IEEE802.3az,IEEE 802.3x, IEEE802.1Q, IEEE802.1P, IEEE802.1D, IEEE 802.3av,IEEE802.1AE | ||
| Topology | XGS-PON: 10 Gbps upstream / 10 Gbps downstream | ||
| Uplink Ports | 1 XGS-PON SFP+ SC/UPC | ||
| Downlink Ports | 1*10G Eth or SFP+ 1*10M/100M/1000M/2500M BASE-T | ||
| Socs | CPU: Realtek RTL9619B Quad-Core 1.0 GHz | ||
| VoIP Ports | 2*FXS ports | ||
| Transmission Rate | 10Gbps at upstream, 10Gbps at downstream | ||
| Transmission Distance | Maximum 20Km | ||
| LED Indicators | Power, PON, LOS,10G, 2.5G, VOIP1-2 | ||
| Ethernet Cable | 10Base-Tx: UTP category 3, 4, 5, up to 100m 100Base-Tx: UTP category 5, up to 100m 1000Base-Tx: UTP category 5, 5E, 6, up to 100m 2500 Base-Tx: UTP category 5, 5E, 6, up to 100m 10G Base-Tx:UTP category 6 up to 55m,6a up to 100m | ||
| Fiber Cable | 8.3μm, 8.7μm, 9μm and10μm single mode fiber cable | ||
| Power Supply | AC 110-240V, DC 12V,2A, External Power Supply, 4KV Surge protection | ||
| Temperature Humidity | Temperature | Humidity | |
| Working | 0℃ – 45℃ | 10% – 90% | |
| Standby | -40℃ – 70℃ | 5% – 90% RH | |
PLS04 XGS-PON ONU Order Information
| Product | PLS01 | PLS02 | PLS04 |
| Product Family |  |  |  |
| 10G PON WAN Optical Technology | XGS-PON | XGS-PON | XGS-PON |
| WAN Interface: Modular Optics (SFP+) | 1 | 1 | 1 |
| LAN: 10GE (SFP+)/10GE (100/1000/10G Base-T Ethernet RJ-45)(1 out of 2) | 1 | 1 | 1 |
| LAN: 2.5GE (10/100/1000/2500 Base-T Ethernet / RJ-45) | 0 | 1 | 1 |
| LAN: 1GE (10/100/1000 Base-T Ethernet / RJ-45) | 0 | 0 | 0 |
| Voice: RJ-11 ports | 0 | 0 | 2 |
| USB2.0 | 0 | 0 | 0 |
| USB3.0 | 0 | 0 | 0 |
| WiFi | NT | NT | NT |
| ANATEL | YES | YES | YES |
