What is EYDFA?
EYDFA is based on the EDFA structure and contains a Ytterbium doped fiber amplifier module…
What is EYDFA? (Erbium Ytterbium Doped Fiber Amplifier)
EYDFA is based on the EDFA structure and includes a Ytterbium-doped fiber amplifier module, which is used to boost the fiber signal to a more intensive optical network. EYDFA is primarily used in high power optical amplifiers with a total output power ranging from 25 to 42dBm (or higher). EDFA’s output power is <25dBm. Essentially speaking, EYDFA is a high power EDFA.

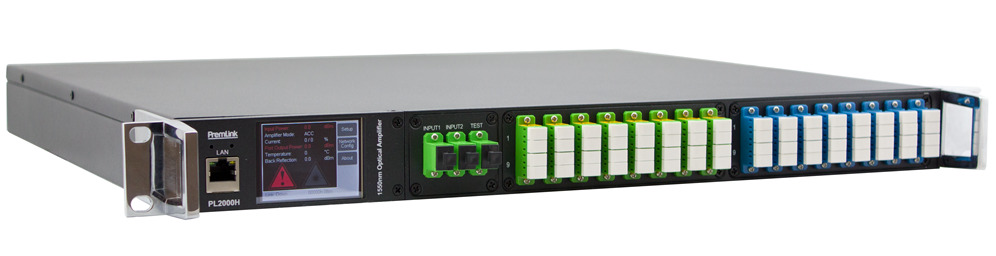

PL2000x Series EYDFA (High Power EDFA)
PL2000x has low noise and high linearity performance to meet the most stringent CATV and FTTx application requirements. It offers a flexible and low-cost solution for wide-area distribution networks. The PL2000x is the first unit in the CATV industry that comes with a touchscreen LCD and back reflection function*.
PL2000x EYDFA (High Power EDFA) by Features
Output Optical Power
Based on the optical power included 25~40dBm before splitter. It is available to make special modifications to a specified output power up to 43dBm before splitter. This optical amplifier has built-in optical power splitter for providing up to 128 output ports. The standard is at 1, 2, 4, 8, 16, 32 or 64 output power port(s).
Three Control Modes
APC (Automatic Power Control): Output Optical Power Level Stabilization
ACC (Automatic Current Control): Pump Current Level Stabilization
AGC (Automatic Gain Control): Optical Gain Level Stabilization
Measurement
Equipped with standard measures of input power and back reflection optical power, and as well as reflected power meter within a wide dynamic range. Measurement of back reflection is a useful function to monitor networks and to configure optimal settings for exploitation.
Optical Switch & xPON
Equipped with an automatic redundant input port, as per customer request. The optical power level at each of the two input ports is measured independently, enabling instant switching from the primary input port to the backup input port. Additionally, it is also available with GPON and XGS-PON pass-through for PON networks.
Management
All PL2000x series optical amplifiers have a built-in web server, which can be accessed by any widely used web browser. Controlling and monitoring of the amplifier is done through the menu of interactive web pages. On-demand monitoring of the amplifier can also be accessed through our SNMP Manager.
Mechanical
All is in a standard 2U (1U and 3U), 19″, equipped with 3 reliable cooling fans operating in parallel with microprocessor overheating protection. It is capable of working with temperatures up to 50°C, and, if necessary, up to 65°C is optional. The standard power operates on AC 90~264V with high efficiency and high reliability.

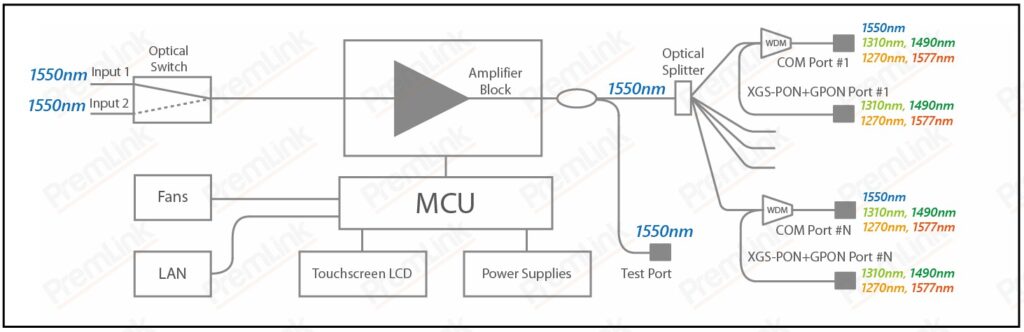

What is the Block Diagram of EYDFA?
PL2000x has CATV, xPON, and Optical switch enabled versions for different applications. The CATV version is a regular traditional EDFA. xPON is for GPON pass-through and/or for GPON & XGSPON pass-through. The Optical switch has two optical inputs. When one fails, the other one can be automatically switched on.
What is Output Power Adjustable?
Output power can be adjusted to a higher or lower value in order to achieve optimal conditions in the appropriate environment. There are methods available to adjust the output power ports for all Premlink EYDFA devices. The adjustable range is extensive, allowing each EYDFA unit to be modified to a 10dBm output per port, regardless of its previous output power of 15 or 20dBm per port.
We have the capability to configure a new output power in AMP mode –> APC –> by inputting the desired output power on-site. This process is quick and easy.Additionally, we can connect to the RJ45 port on the Local LAN or access the web browser via the internet. The default IP address is 192.168.1.1. By clicking on “Amplifier setup” and selecting “APC” mode, you can modify the output power as needed.
