PL800B FTTB Optical Receiver

Key Features
5~1002MHz Bandwidth
High Performance and Low Cost
LED Digital Control Function

Lead Time
Standard lead time is as follows; for urgent, it is negotiable.

Quantity (PCS)1003K> 3K
Lead Time (Days)1525To be negotiated

Buying Samples
MOQ: 1pcs

Customization
Customized Temporary Logo / Labels
MOQ: 1pcs

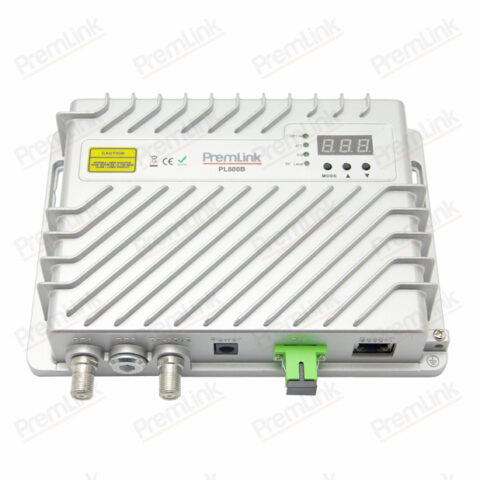

PL800B FTTB Optical Receiver  adapts new technology for FTTB Applications, it has digital LED control on front panel to adjust output level, ATT and EQ. PL800B FTTB optical receiver has 108dBuV for a good link performance,high output level,which is best choice for the FTTB network construction.

Block Diagram

PL800A Optical Receiver Block Diagram

Functional Explanation

PL800A Functional Explanation

No.DescriptionNo.Description
1Fix Hole5Optical Input Port
2Main Output Port6RJ45 Management Port (Optional)
3-20dB Test Port7Grounding
4Power Supply Port8Digital Control Panel

 Specifications

Optical Characteristics

ParameterUnitValue
Optical Input Wavelengthnm1100~1600
Optical Input Power (AGC Range)dBm-6~+2
Optical Return LossdB≥40
Optical Fiber TypeSM
Optical ConnectorSC/APC or FC/APC

RF Characteristics

ParameterUnitValue
Frequency RangeMHz47~862
FlatnessdB±1
Output ImpedanceΩ75
RF Return LossdB≥14
RF Output ATT Adjustable RangedB0~20
RF Output EQ Adjustable RangedB0~15
Output Ports2
CTB1dBc60
CSO1dBc60
C/N1dBc49
RF Output Level2dBμv110

1) Testing condition: input power@-4dBm, 42 CENELEC channels, OMI=3.5%, EQ=9dB ,RF Output Level=110dBuV

Other Characteristics

ParameterUnitValue
Power SupplyVAC110~242
Power ConsumptionVA≤15
Working Temperature℃-20~+55
