Product Overview
PL1310A 1310nm optical transmitter uses an ORTEL (EMCORE) or XESTON high performance DFB laser with AGC / MGC and OMI adjustable functions. There are also WEB/SNMP and plug-in power supply modules.
Our 1310nm optical transmitter is designed for long-distance optical fiber transmission of television signals. It combines an imported high-performance DFB laser as a light source with RF power automatic processing technology to ensure excellent machine performance. All of its excellent characteristics make it the first choice for large-scale HFC networks.
Specifications
Optical Characteristics
| Parameter | Unit | Value |
| Working Wavelength | nm | 1310±10 |
| Output Power | mW | 6~24 |
| Optical Return Loss | dB | ≥45 |
| Optical Fiber Type | — | SM |
| Optical Connector | — | SC/APC or FC/APC |
RF Characteristics
| Parameter | Unit | Value |
| Frequency Range | MHz | 45~870/1002/1218 |
| RF Input Return Loss | dBm | ≥16 |
| RF Input Level | dBμV | 78±5 (AGC) |
| Flatness | dB | ±0.75 |
| CNR1 | dB | >50 |
| CSO1 | dBC | ≤-60 |
| CTB1 | dBC | ≤-65 |
- Testing condition: OMI=3.5%,optical input power @-1dBm, 98chs signal output, above 550MHz at -10dB offset.
Others
| Parameter | Unit | Value |
| Operating Voltage | V | 90~260, 50Hz |
| Power Consumption | W | ≤30 |
| Operating Temperature | ℃ | 0~50 |
| Dimension（L*W*H） | mm | 484*370*44 |
| Weight | Kg | <3.5 |

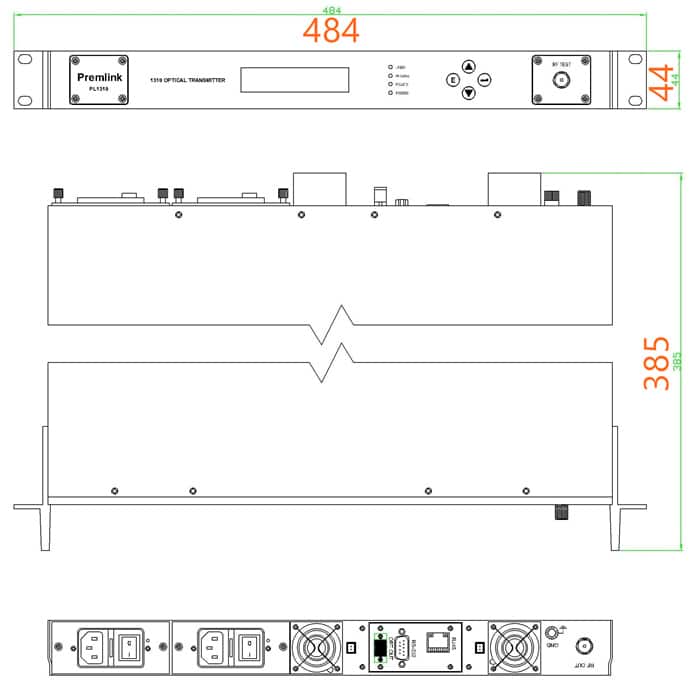

Outlines Drawing (dimensions are in mm)

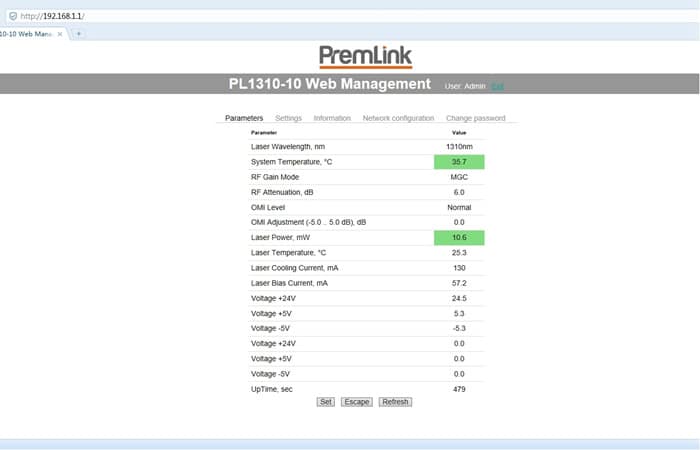

Web Interface
Welcome to enquiry our PL1310 1310nm optical transmitter.
PL1310A: High Quality 1GHz 1310nm Optical Transmitter for HFC Headends
A 1310nm transmission platform featuring premium DFB laser technology and advanced RF processing for long distance CATV distribution.
- Premium DFB Light Source: This 1310nm optical transmitter is equipped with industry-leading ORTEL (EMCORE) or XESTON DFB lasers, ensuring superior linearity and a low noise floor for high-capacity signal loads.
- 1GHz/1.2GHz DOCSIS 3.1 Ready: Engineered with an extended frequency range up to 1218MHz, the PL1310A is fully optimized for next-generation digital QAM and DOCSIS 3.1 data transmission.
- Selectable AGC/MGC Control: Offers flexible RF signal management with dual modes: Automatic Gain Control (AGC) for stable output during link fluctuations, and Manual Gain Control (MGC) for precise OMI (Optical Modulation Index) tuning.

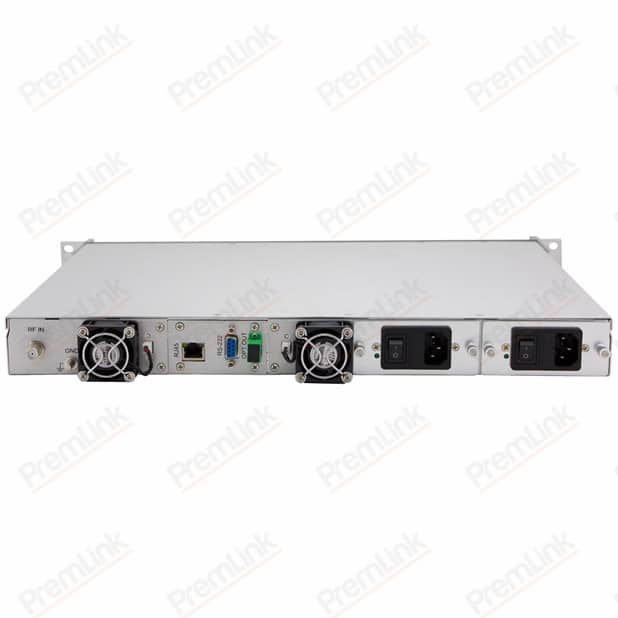

- High Reliability: Housed in a standard 19″ 1U rack-mount chassis with plug-in dual power supply modules and an intelligent auto-monitoring system to ensure 24/7 uptime.
- Advanced Network Management: Features a built-in WEB GUI and SNMP interface, allowing engineers to monitor laser status, temperature, and RF power levels remotely from any NOC.
Technical FAQ: PL1310A 1310nm Optical Transmitter
Q1: How does the PL1310A maintain high CNR over long-distance links?
A: The 1310nm optical transmitter utilizes advanced RF power automatic processing technology and internal pre-distortion circuitry. By optimizing the OMI and using a high-isolation DFB laser, it achieves a CNR >51dB, minimizing signal degradation across the HFC fiber backbone.
Q2: Can I adjust the RF input levels manually?
A: Yes. While the AGC mode is standard for ease of use, the PL1310A allows you to switch to MGC mode. This enables technical staff to manually balance the RF input level and adjust the OMI via the front panel or WEB GUI to match specific headend combined output levels.
Q3: What are the cooling and power redundancy features for this transmitter?
A: Designed for mission-critical headends, the PL1310A includes a dual-fan cooling system and supports hot-swappable dual power supplies (AC or DC). The intelligent monitoring system automatically adjusts fan speed based on the laser’s internal temperature to extend the device’s lifespan.
Extending beyond 20km?
For long-haul distribution requiring optical amplification, consider our
1550nm Externally Modulated Transmitter
paired with Premlink EDFA systems.
