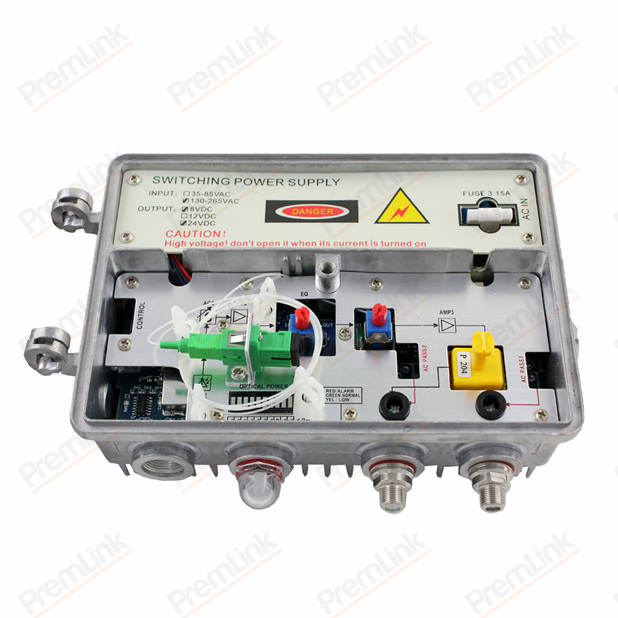

PL1000A outdoor optical receiver has good quality and performance. It is for FTTB receiving terminal in the CATV network.
Optical Characteristics
| Parameter | Unit | Value |
| Wavelength | nm | 1100-1600 |
| Input Power Range | dBm | -7~ +2 |
| AGC Range | dBm | -7~ +2 |
| Optical Power Indicator | dBm | Red:<-7 Green:-6~+2 Yellow:-7~-6 |
| Optical Return Loss | dB | ≥45 |
| Connector Type | — | FC/APC or SC/APC |
RF Characteristics
| Parameter | Unit | Value |
| Frequency Range | MHz | 47～862/1002 |
| Maximum Output Level1 | dBμV | ≥112 |
| Flatness | dB | ±0.75 |
| Adjustable EQ Range | dB | 0～18(continuously adjustable/Plug-in) |
| Adjustable ATT Range | dBμV | 0～18(continuously adjustable/Plug-in) |
| RF Return Loss | dB | ≥16 |
| Input Impedance | Ω | 75 |
| CSO2 | dB | ≥65 |
| CTB2 | dB | ≥60 |
| C/N2 | dB | ≥51 |
1.Single Output level
2.Testing condition is input [email protected],85PAL channels,(flat output is 102dBμV,signal level in 47~550MHz is higher 10dB in 550~862MHz),OMI=2.8%
Others
| Parameter | Unit | Value |
| Power Supply | VAC | 110~245 or 35~90 |
| Power Consumption | VA | <20 |
| Working Temperature | ℃ | -40~+60 |
| Dimension（L*W*H） | mm | 325*220*115 |
| Weight | Kg | 4 |
