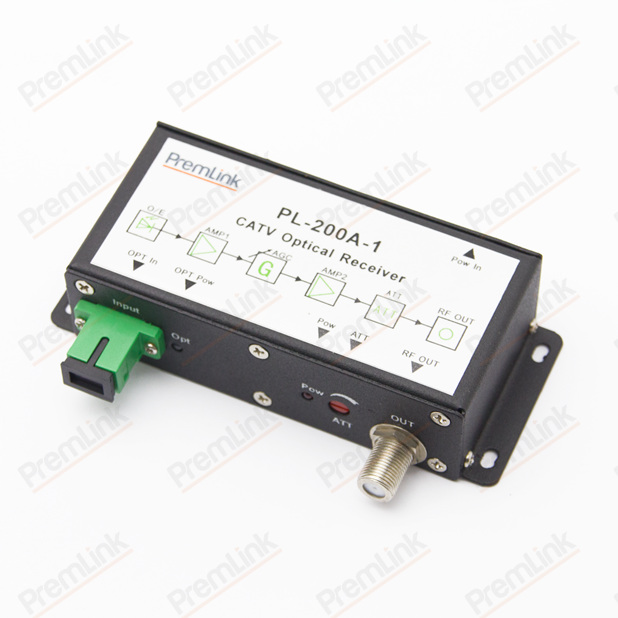

PL200A-1 CATV Optical Receiver
PL200A-1 CATV FTTH optical receiver,compacted in size, is design for FTTH application.and, it adapts high performance receiving tube, and also, ahve optical power indicators.
Features
Compacted in size
High performance receiver tube
AGC function
Optical indicator display
Excellent switching power supply
Specifications
Optical Characteristics
| Parameter | Unit | Value |
| Wavelength (Model:PL200A-1) | nm | 1100-1650 |
| Wavelength (Model:PL200A-2,PL200A-3) | nm | 1550±10 |
| PON Pass-through Wavelength (Model:PL200A-3) | nm | 1310nm/1490nm |
| Optical Isolation - Reflect (Model:PL200A-3) | dB | 40 @1310/1490nm |
| Optical Isolation - Pass(Model:PL200-3) | dB | 25 @1550nm |
| Input Level Range (PIN) | dBm | -10~ -3 or -7~0 |
| AGC Range | dBm | -10~ -3 or -7~0 |
| Optical Return Loss | dB | ≥45 |
| Connector Type | -- | FC/APC or SC/APC |
RF Characteristics
| Parameter | Unit | Value |
| Frequency Range | MHz | 47～862/1002 |
| Gain Characteristic Flatness | dB | ±0.75 |
| Output Level | dBμV | 80±1 or 85±1 or 90±1 |
| CTB1 | dB | ≥63 |
| CSO1 | dB | ≥63 |
| C/N1 | dB | ≥50 |
1.Testing condition: OMI=3.5%,optical input power @-1dBm, 98chs signal output, above 550MHz at -10dB offset.
Others
| Parameter | Unit | Value |
| Operating Voltage (External Power Supply) | VDC | 9 or 12 |
| Weight without Power Supply | kg | 0.18 |
| Power Consumption | W | <2.5 |
| Output Connector | -- | F |
| Operating Temperature | ℃ | -20…+50 |
| Dimension（L*W*H） | mm | 138*100*27.5 |
